VR5D-E Flatbed
ENTRY LEVEL FLATBED UV-LED PRINTER
MEET THE
VR5D-E

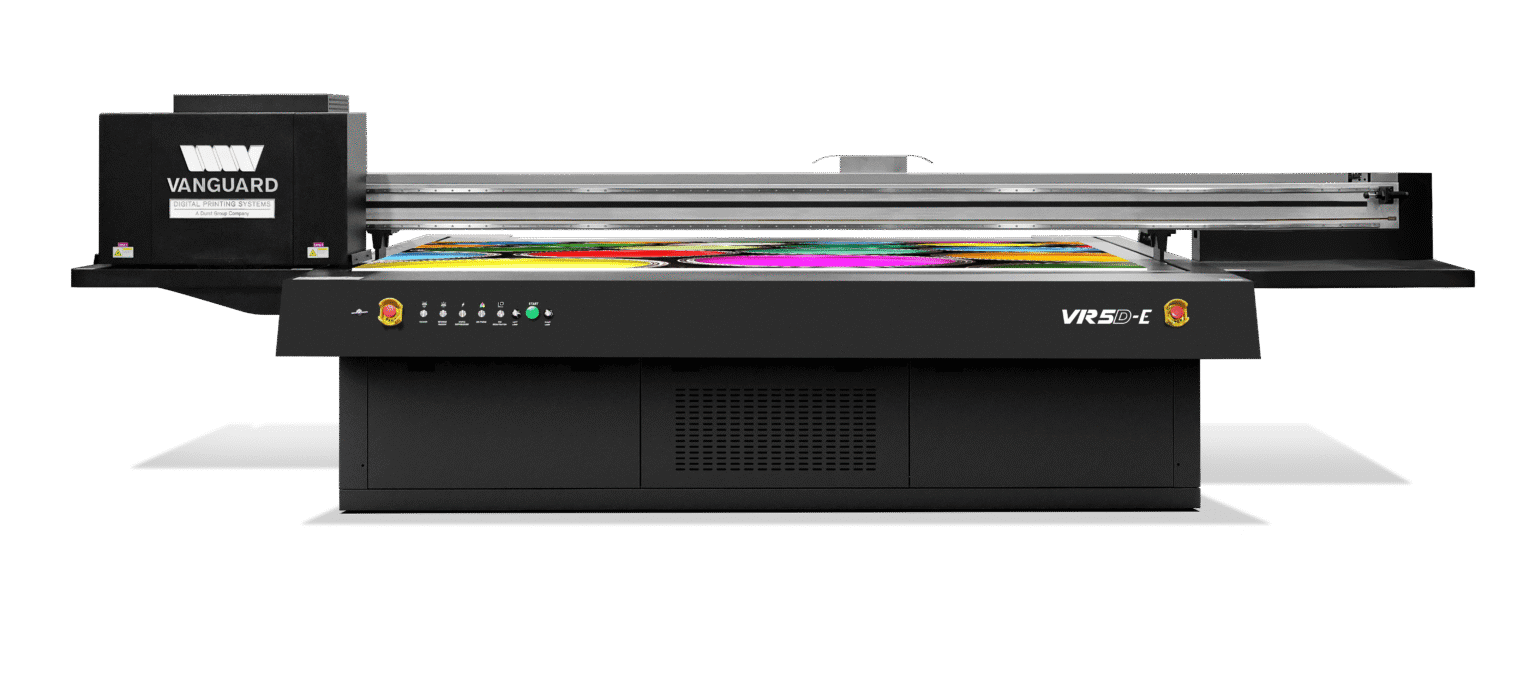

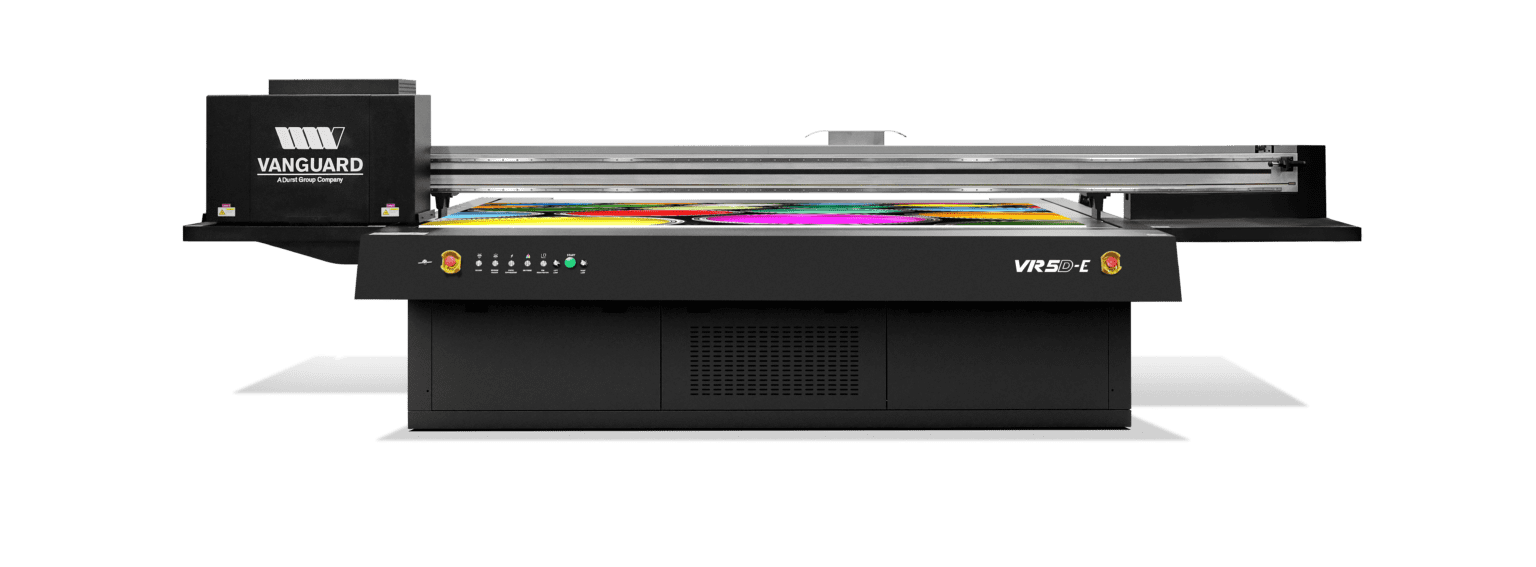

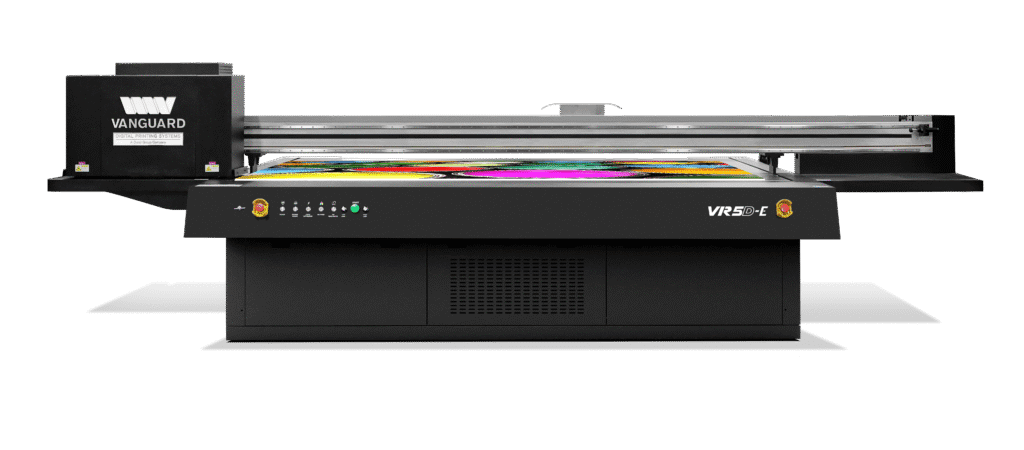

The Vanguard Digital Printing Systems VR5D-E flatbed LED UV printer combines revolutionary technology, industry leading quality and outstanding speed to out perform in the most demanding environments.
The Vanguard Digital Printing Systems VR5D-E 4’ x 8’ flatbed LED UV printer is the most robust, full-featured, flatbed printer money can buy, period! With every imaginable feature at an unbelievable price, your return on investment will far exceed expectations. With the ability to add up to 10 Ricoh Gen5 printheads, our printer will be on the same trajectory of growth as your business.
The VR5D-E utilizes dual-channel Ricoh Gen5 printheads allowing for greater versatility and scalability. With the ability to run two colors within the same printhead and 10 printhead slots in the jet-plate, our VR5D-E can be configured a multitude of different ways. The VR5D-E, with just two printheads in quality mode, is capable of printing up to 60 4’ x 8’ boards in a single shift. Need more speed? Add a second row of printheads, now or at any time in the future, and you can nearly double your output. Are you being met with the demand to print white? Vanguard has you covered! By simply adding white to your machine you’ll have the capability to meet those demands.
BandGUARD is the unique feature that allows the VR5D-E to rise above the competition. By installing 4 printheads per row, we mirror the printhead array which dramatically affects bi-directional print capability therefore maximizing quality and minimizing time. The BandGUARD configuration, YMCK-KCMY, lays down the ink in the same color order in each direction. This allows for higher quality prints with fewer passes.
Print Speed Single Row
Print Speed Dual Row
VR5D-E LED grows
with your business
With the VR5D-E from Vanguard Digital Printing Systems, you are only limited by your imagination. You can print on:
The versatility of the VR5D-E is its most valuable asset. You’ll have the ability to not only print everyday signage, but also wood, metal, polycarbonate, aluminum, acrylic, glass, mirror and so much more. The VR5D-E’s ability to print on media up to 4” thick, auto-height detection, one-touch pin registration, front to back and back to front printing and reversible 4-zone vacuum, make this printer the right choice for your UV flatbed printing needs.
VR5D-E GROWS with your business
Need more colors? Add ink!
white and clear ink channels are optional
|
|
Single Row
|
Dual Roll
|
|---|---|---|
|
Express Mode
|
570 Sq.Ft./H
|
648 Sq.Ft./H
|
|
Production Mode
|
377 Sq.Ft./H
|
535 Sq.Ft./H
|
|
Quality Mode
|
188 Sq.Ft./H
|
476 Sq.Ft./H
|
|
High Quality Mode
|
140 Sq.Ft./H
|
320 Sq.Ft./H
|
